Key Applications
  • Letters
  • Brochures
  • Invoices
  • Book Covers
  • Menus
  • Newsletters

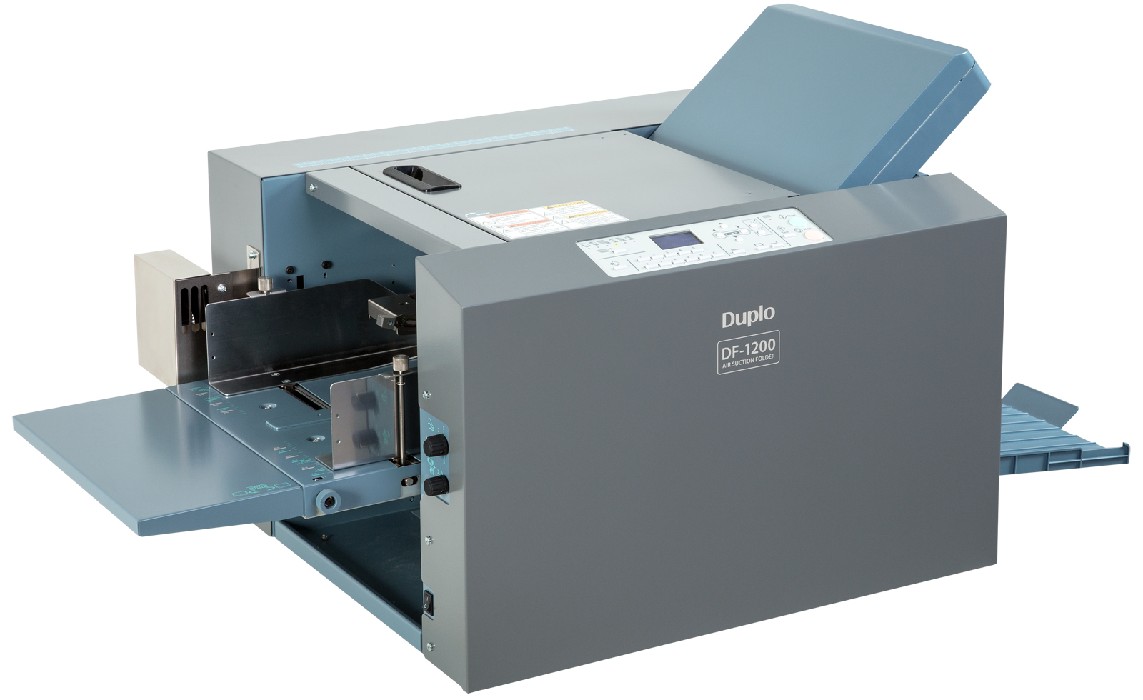

Duplo 1200

Brochure Button

The Duplo DF-1200 Air Suction Paper Folder provides the perfect tabletop solution for folding offset and digitally printed documents. With a production speed of up to 260 sheets per minute, the DF-1200 utilizes Duplo's renowned suction feed technology to handle static build-up in digital print applications and also comes equipped with Optical Double Feed Detection to ensure personalized jobs are folded one sheet at a time. Fully automated and quiet in operation, the DF-1200 is ideal for any office environment.

The DF-1200 comes pre-programmed with six standard fold types including single, double, half accordion, letter, accordion, and gate - enabling users to fold a wider range of applications at the touch of a button. The DF-1200 automatically detects five of the most popular paper sizes from letter, legal, ledger, half letter and half legal, and sets the pre-programmed fold position without any adjustments required. Users can also create custom fold styles with non-standard paper sizes simply by moving the fold plates via the user-friendly control panel and save them into one of the 20 job memories. Further extending its capabilities, the DF-1200 comes standard with a cross folding unit to reprocess single folded sheets into right angle folds.


Features
  • Air suction feed system ideal for digital print documents
  • Miss-feed, paper jam, and optical double feed detections ensure document integrity
  • Standard cross folding unit for right angle folds
  • Six pre-programmed fold styles
  • High speed folding up to 260 sheets per minute
  • 20 job memories for custom folds
  • Automatic paper size detection
  • Automatic fold plate setting
  • Sound absorbers for quiet operation
  • 625-sheet feed tray capacity
  • Optional Side Air Kit for large paper sizes
SPECIFICATIONS
Paper Size 4.7” x 7.2” - 12.2” x 18”
Paper Weight Up to 230gsm
Maximum Speed 260 sheets per minute
Custom Fold Memories 20
Gate Fold Yes
Cross Fold Yes
Double Sheet Detection Yes
Operating Sound Level 74.3 dB
Side Air Kit Optional
Feed Tray Capacity Up to 625 sheets
