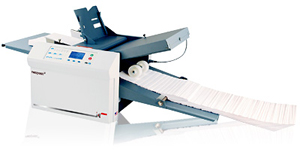

Quadient PF-90 folder

The PF-90 Fully Automatic Document Folder is designed for companies looking for ultimate productivity and application flexibility. From fully automated fold plates to the automated stacker wheelers eliminating potential stoppages – all designed to increase overall efficiency in folding your documents professionally every time. Easy adjustment can be made to process a variety of precision folds including single, letter, z-fold, gate, fold-out, and double parallel.

Productivity

  • Process quickly at 20,100/hour
  • Fully automated folder with automatic stacker wheels
  • Input and Output feed balanced — 500 sheets and 500 finished pieces
  • Programmable jobs
  • Automatic fold settings

Flexibility

  • Process variable page sets such as invoices or statements
  • Cross folding available for newsletters or large format documents
  • Wide variety of folds
  • Process various paper weights

Ease-of-Use

  • Large LCD Intuitive control panel
  • Auto Batch to fold in batches with timed delays
  • Counter for security
  • Batch counter to stop at pre-set number
SPECIFICATIONS
Hopper Capacity Up to 500 Sheets 20#
Fixed Speed Up to 20,100 pieces per hour (based on 11" z-fold)
Paper Size   Min Max
  Width 3.5" 12.25"
  Length 5" 18"
Monthly Volume 150,000 pieces
Dimensions Closed: 33"L x 20"W x 19"H
Fully Extended: 60"L x 20"W x 19"H
Weight 67 lbs
Power Requirements Voltage 120 (+6-10%)
Frequency 50/60 Hz
